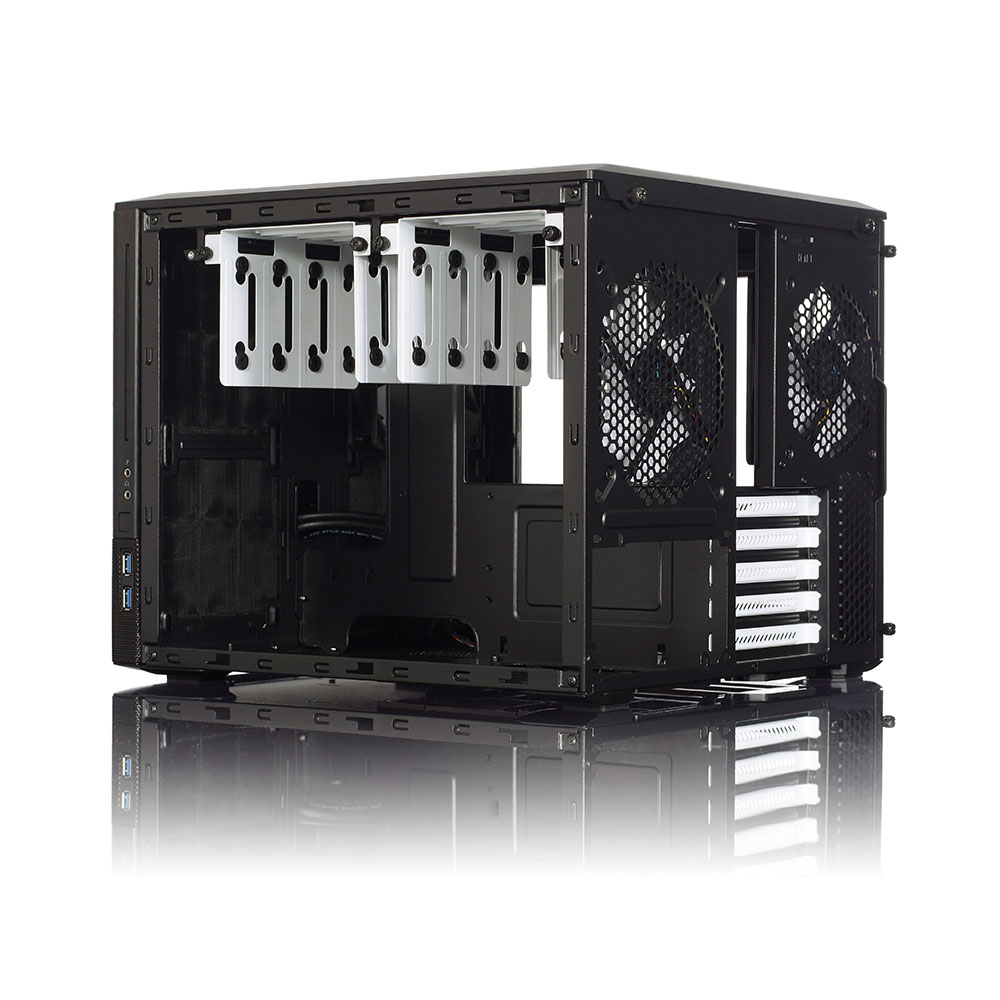

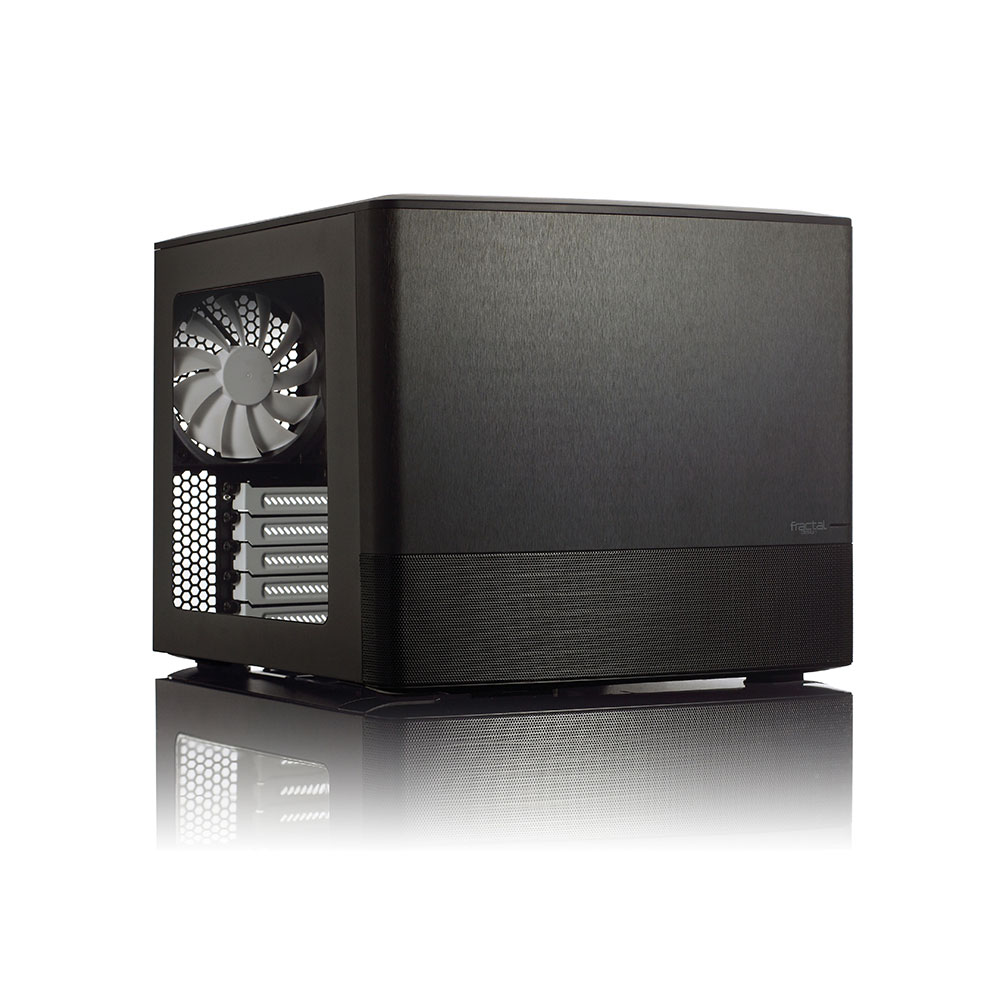

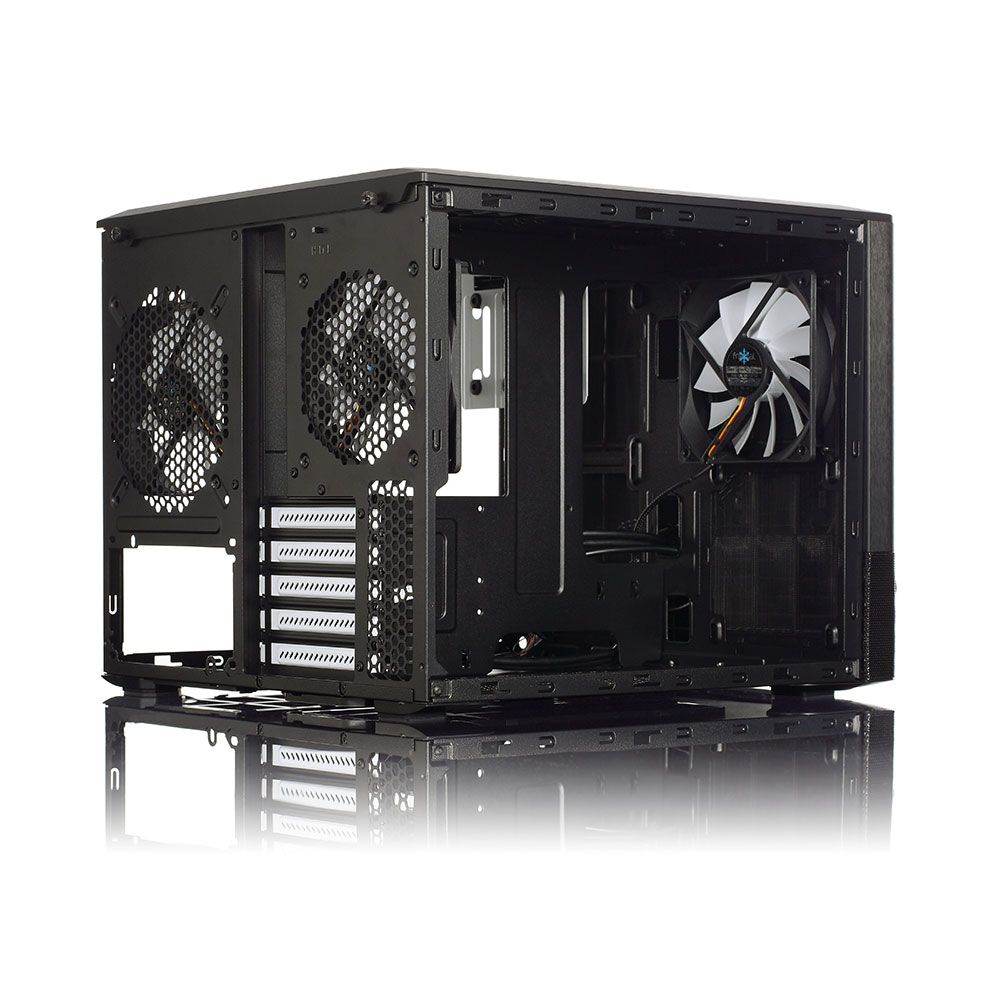

Fractal Design | NODE 804 | Side window | 2 - USB 3.0Audio in/outPower button with LED (white)HDD activity LED (white) | Black | Micro ATX | Power supply included No
| Package depth | 41.2 cm |
| Weight | 6 oz |
| Package height | 46.8 cm |
| Package width | 37 cm |
| Depth | 38.9 cm |
| Rear fans installed | 2x 120 mm |
| Maximum rear fans | 2 |
| Supported motherboard form factors | Micro-ATX, Mini-ATX |
| Maximum top fans | 4 |
| Expansion slots | 5 expansion slots |
| Dimensions (WxDxH) | 344 x 307 x 389 mm mm |

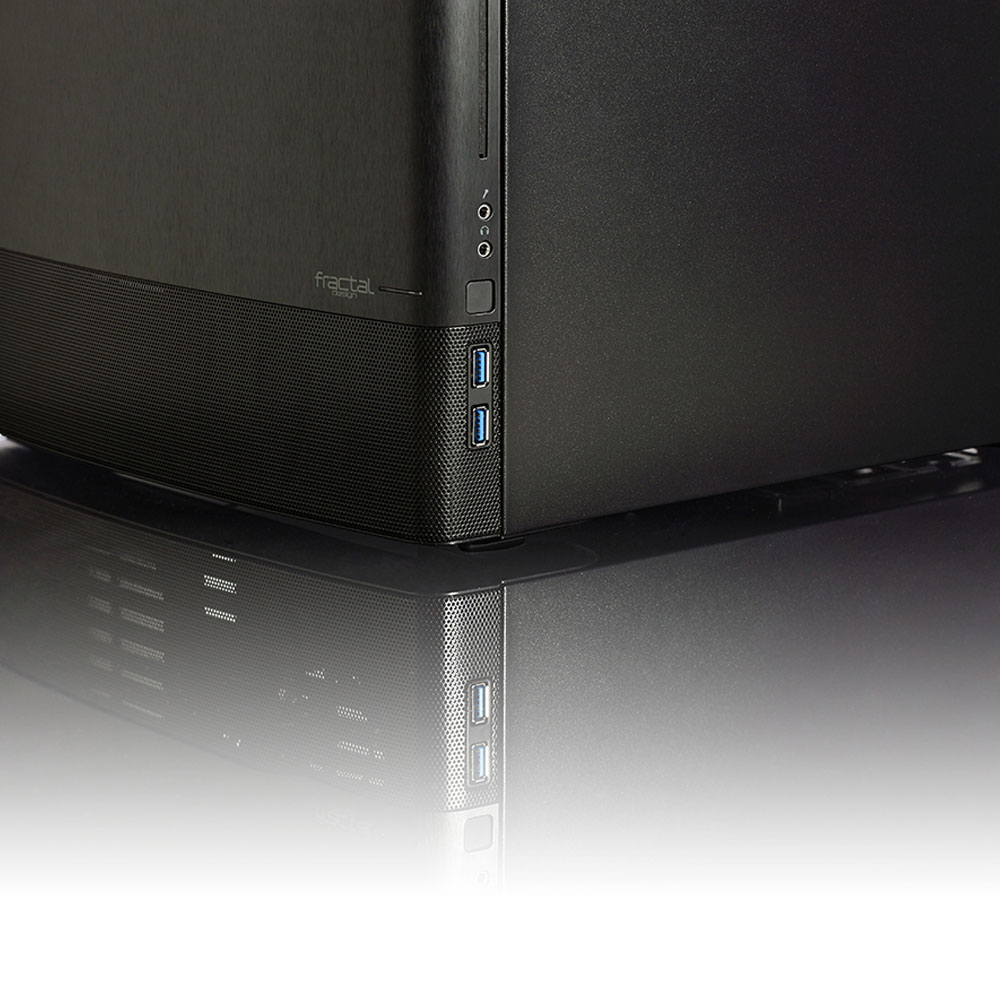

| Panel type | 2 - USB 3.0Audio in/outPower button with LED (white)HDD activity LED (white) |
| Number of expansion slots | 5 expansion slots |
| Drive bays | 8 - 3.5? HDD positions2 - 2.5? dedicated SSD unit positions2 - Extra positions for either 3,5? or 2,5? drives " |
| Cooling type | Front: 4 – 120mm fans (included is one hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed)Rear: 1 - 120/140mm fan (included is a hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed)Rear: 1 - 120mm fan slots (included is 1 hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed)Top: 4 - 120x140mm fans (not included)Fan controller: 1 - Integrated fan controller for up to 3 fans (included)WATER COOLING COMPATIBILITY:Front (right chamber) - 240 mm radiator configurations up to 60 mm thick (with fans) and 278 mm tall are allowed.Front (left chamber) - 240 mm radiator configurations up to 60 mm thick (with fans) and 278 mm tall are allowed. Using a radiator in this position prevents the use of a fan in the top position just next to it.Top (right chamber) - 240/280 mm radiators up to 130mm thick (with fans) may be fitted if the HDD drive bays are taken out or placed elsewhere. No limitation to thickness.Top (left chamber) - 240 mm radiator configurations up to 130 mm thick (with fans) will fit. Radiators in this position limits the height of memory modules to 48 mm tall. |
| Producer product name | NODE 804 |
| Height | 30.7 cm |
| Net weight | 5.786 kg |
| Maximum front fans | 4 |
| Package weight | 7.7 oz |
| LED indicators | HDD, Power |
| Front fans diameters supported | 120 mm |
| Rear fans diameters supported | 120,140 mm |
| Supported hard disk drive sizes | 2.5,3.5 mm |
| Top fans diameters supported | 120,140 mm |
| Front fans installed | 1x 120 mm |
| Volume (m3) | 0.07134192 m³ |
| Gross height (mm) | 412 mm |
| Number of 3.5" bays | 8 |
| Type | PC |
| Width | 34.4 cm |
| Number of 2.5" bays | 2 |
| Audio output | Yes |
| Tare weight (kg) | 1.414 kg |
| Gross width (mm) | 370 mm |
| Paper/Pasteboard | 1387.00 g |
| Form factor | Micro ATX |
| Audio input | Yes |
| Plastic (No PET) | 27.00 g |
| Producer | Fractal Design |
| Power supply included | No |
| Side window | Yes |
| Liquid cooling capability | Yes |
| Gross weight | 7.2 kg |
| Gross depth (mm) | 468 mm |
| Colour of product | Black |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
| Warranty | 24 month(s) |
| Packing quantity | 1.00 pc(s) |
| Embeeded battery | No |
| WEEE tax | No |
| Palette Qty | 12 pc(s) |
