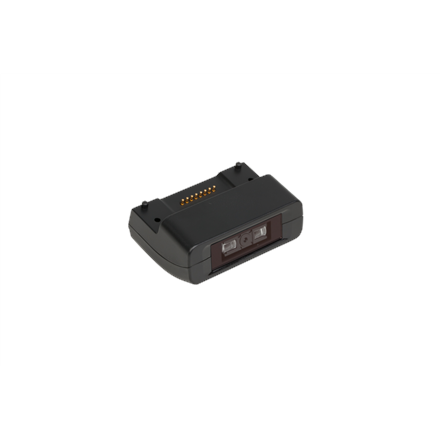

ProDVX | Barcode Module | 1D/2D
| Producer product name | 1D/2D |
| Dimensions (WxDxH) | 21.5 x 14.5 x 10 mm |
| VESA mounting | Pogo Pins |
| Voltage | 3.3 VDC V |
| Output interface | UART TTL, USB HID, USBVCP |
| Cables included | Flex cable |
| Other features | Light Source white LED, visible red LEDbar; Sensor 640 x 480; Scan Rate 30 Frames/Sec; Resolution 5mil/0.125mm; Scan Angle Horizontal 35°, Vertical27°; PrintContrast 10%; Width of Field 156mm; OperatingTemperature -20 ~ 60°C; StorageTemperature -40 ~ 70°C Humidity 0% ~ 95%RH(Non-condensing); Drop Durability 1.5 M; Ambient Light 100,000 lux(Sunlight) |
| Producer product family | Barcode Module |
| Paper/Pasteboard | 33.00 g |
