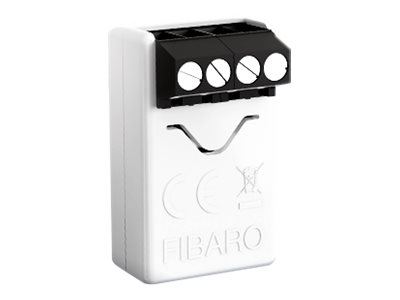

Fibaro | Smart Implant | Z-Wave EU | White
| Transmit power | 1 mW |
| Special features | Whether to control your garage door or the heating system, as an intelligent supplement to your alarm system or simply to make every device smart in your home. The FIBARO Smart Implant can also be connected to sensors in the garden that the Smart Home does not end at the front door. As a further development of the Universal binary Sensor, the FIBARO Smart Implant controls the connected device, can be used for scene control, has a temperature sensor and is compatible with binary sensors. In addition to controlling devices (ON/OFF), the device reads sensor data and amplifies the existing Z-Wave network. |
| Other features | Power supply 9-30V DC ±10%. Inputs 2 0-10V or digital inputs 1 serial 1-wire input. Outputs 2 potential-free outputs. Supported digital sensors 6 DS18B20 or 1 DHT22. Maximum current on outputs 150mA. Maximum voltage on outputs 30V DC / 20V AC ±5%. Built-in temperature sensor measurement range -55°C–126°C. Operating temperature 0–40°C. Radio frequency 868.4 or 869.8 MHz EU. Radio ransmit power max. 7 dBm (EIRP). Range up to 50m outdoors up to 40m indoors (depending on terrain and building structure). Dimensions (Length x Width x Height) 29 x 18 x 13 mm. |
| Producer product name | Smart Implant |
| Supported network protocols | Z-Wave EU |
| Net weight | 0.019 kg |
| Overload protection | Yes |
| Gross width (mm) | 31 mm |
| Volume (m3) | 0.000130975 m³ |
| Palette Qty | 13193 pc(s) |
| Sockets quantity | 1 |
| Remotely operated | Yes |
| Type | Actors |
| Producer | Fibaro |
| Paper/Pasteboard | 8 g |
| Gross depth (mm) | 65 mm |
| Gross height (mm) | 65 mm |
| Connectivity technology | Wireless |
