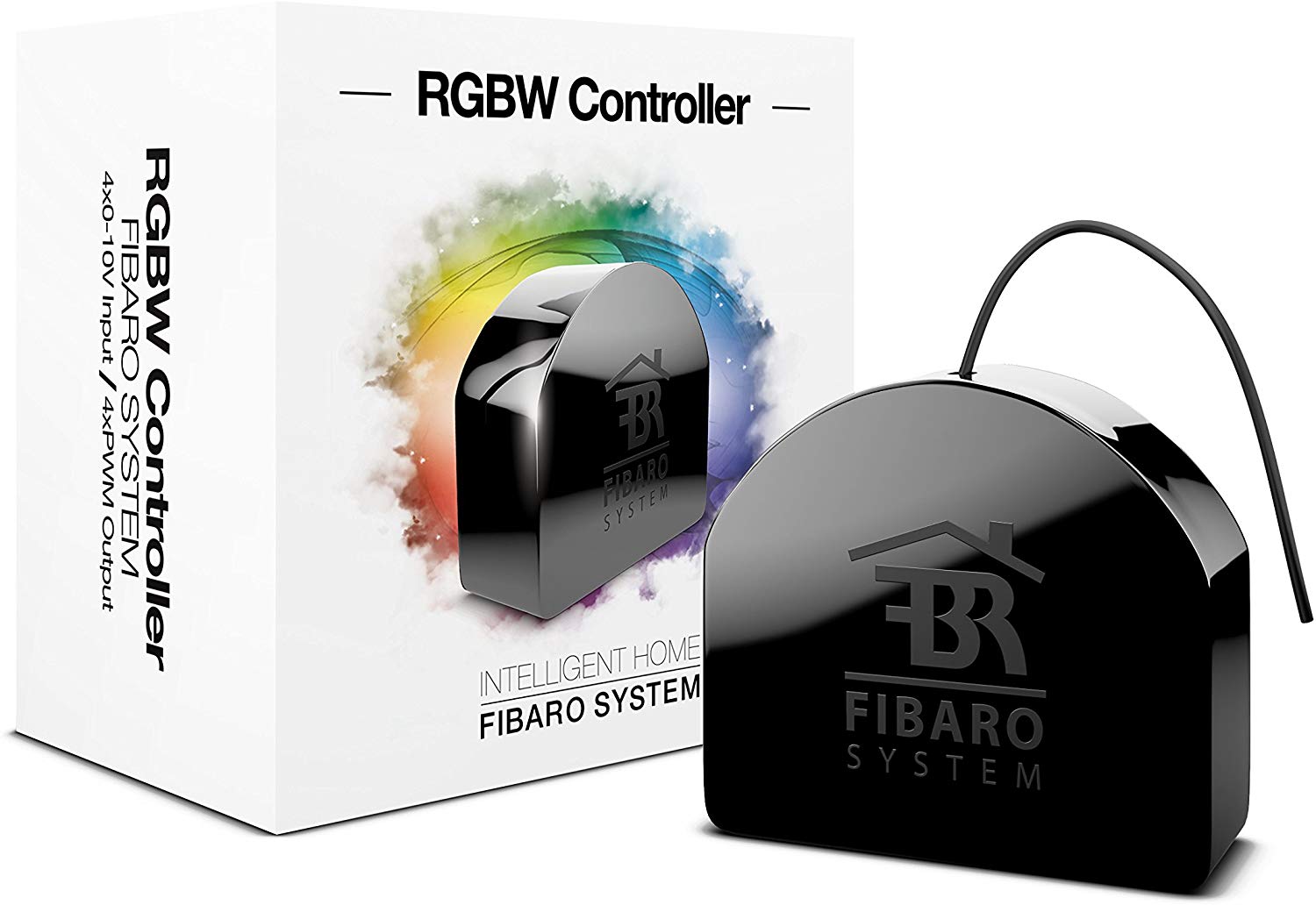

Fibaro | RGBW Controller | Z-Wave Plus | Black
| Other features | Universal, Z-Wave compatible RGB / RGBW controller. Fibaro RGBW Controller may control LED strips, RGB / RGBW LEDs and 12V - 24V powered light sources. In addition the device supports up to four, 0V - 10V analogue sensors, such as temperature sensors, humidity sensors, wind sensors, air quality sensors, light sensors etc. All IN and OUT terminals may be user configured for LED control or 0V-10V signal readouts. May be used as a dimmer with Halogen lamps. Product Highlights: • Current and historical power consumption measuring • Controlled through other Fibaro devices or any Z-Wave controller, • Microprocessor controlled, • Most advanced device of this type in the World. |
| Producer product name | RGBW Controller |
| Technical features | Power source: 12V DC / 24V DC, • Rated output power: combined 12A (sum of all connected outputs), • Max load (e.g. Halogen lamps) at 12V - 144W combined, at 24V - 288W combined. • Power consumption: < 0.3W, • Radio frequency: 868.4 MHz EU; 908.4 MHz US; 921.4 MHz ANZ; 869 MHz RU, • Antenna range: up to ca. 50 meters outdoors, or up to 30 meters indoors (depends on building structure), • Outside dimmensions (L x W x H) 42.5mm x 38.25mm x 20.3mm. |
| Supported network protocols | Z-Wave Plus |
| Gross depth (mm) | 65.00 mm |
| Volume (m3) | 0.00012675 m³ |
| Frequency range | 868.4 MHz |
| Type | Actors |
| Purpose | Home Automation |
| Plastic (No PET) | 6 g |
| Palette Qty | 6817 pc(s) |
| Producer | Fibaro |
| Gross height (mm) | 65 mm |
| Net weight | 0.01 kg |
| Tare weight (kg) | 0.03 kg |
| Connectivity technology | Wired |
| Paper/Pasteboard | 24 g |
